Array

Array

Array : <index, value> 쌍의 집합

Data Structure

• 각각의 인덱스에는 그 인덱스와 연관된 값이 있다.

표현법

• 연속된(consecutive) 메모리로 구현
• 수학적 표현으로, 대응(correspondence) 또는 매핑(mapping)

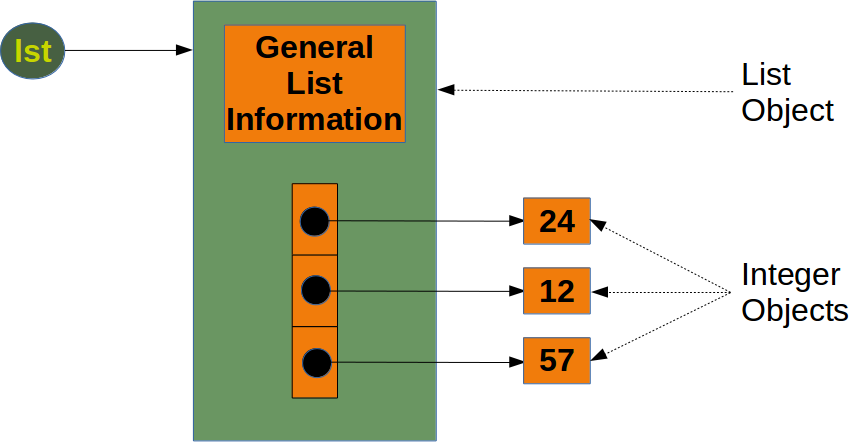

List in Python

source: https://webcourses.ucf.edu/courses/1249560/pages/python lists vs numpy arrays what is the difference

• 리스트 자체를 가르키는 메모리 주소가 있다.
• 각각의 인덱스에 대응하는 값은 그 다음부터 등장

class Array:
    def __init__(self, len=10):
        self.len = len
        self.data = [0] * len

    def __str__(self):
        return f"{self.data}"

    def __len__(self):
        return len(self.data)

    def __setitem__(self, id, elem):
        self.data[id] = elem

    def __getitem__(self, id):
        return self.data[id]

if __name__ == "__main__":
    # Array객체 instance 를 하나 생성한다
    # 기본크기는 10 개이다
    arr = Array(5)

    for i in range(len(arr)):
        arr[i] = i

    print(arr)
    index = 3
    print(f"arr[{index}] = {arr[index]}")

    for i in arr:
        print(id(i), i)

    print(sum(arr))

---

Ordered List

Linear List or Ordered List

• (Item1, Item2, Item3, ...)
• (Sunday, Monday, Tuesday, Wednesday, Thursday, Friday, Saturday)
• etc

class OrderedList():
    def __init__(self):
        self.elems = []

    def __repr__(self):
        return str(self.elems)

    def __len__(self):
        return len(self.elems)

    def __getitem__(self, index):
        return self.elems[index]

    def __str__(self):
        return str(self.elems)

    def is_empty(self):
        return not bool(self.elems)

    def add(self, elem):
        if not self.elems:
            self.elems.append(elem)
            return
        cur = 0
        while cur < len(self) and self[cur] <= elem:
        # 삽입할 위치가 배열의 범위를 벗어나지 않고
        # 현재 위치의 값이 elem 보다 작으면
            cur += 1 #인덱스를 증가
        self.elems.insert(cur, elem) #반복문이 끝난 뒤 elem 삽입

    def remove(self, elem):
        self.elems.remove(elem)

    def search(self, elem): #elem이 배열 안에 있는지 여부
        cur = 0
        while cur < len(self) and self[cur] != elem:
            cur += 1
        return True if cur <= len(self) else False

    def index(self, num): #num값의 위치 반환
        cur = 0
        if num in self.elems:
            while cur < len(self) and self[cur] != num:
                cur += 1
            return cur
        else:
            return None

---

Sparse Matrix

• 일반적인 행렬의 표현은 2차원 배열로 표현한다.
  - a[MAX_ROWS][MAX_COLS]
  - a[m][n]

• Sparse Matrix
  - 많은 0으로 구성된 행렬
  - 2차원 배열로 Sparse Matrix를 구현하면 낭비하는 메모리가 많다.


• Representation
  - <row, col, value> 형태로 element를 표현
  - 각 행 마다 <row, col, value> 저장
  - 각 행에 대해, 열은 오름차순
  - 행 번호, 열 번호, 0이 아닌 element 값 저장

class Term:
    def __init__(self, row=0, col=0, value=0):
        self.row = row
        self.col = col
        self.value = value

    def __str__(self):
        return f"{self.row, self.col, self.value}"

    def __repr__(self):
        return str(self)


class MatrixSparse:
    def __init__(self, rows=0, cols=0, size=0, sparse=[]):
        self.rows = rows
        self.cols = cols
        self.size = size
        self.sparse = sparse

    def build_matrix_sparse(self, mat):
        self.rows = len(mat)
        self.cols = len(mat[0])

        self.sparse = [ #v가 0이 아닐 때,
            Term(r, c, v) #Term을 생성
            for r, row in enumerate(mat) #r은 mat의 첫 번째 index, row는 그 index의 값(배열)
            for c, v in enumerate(row) #받은 배열을 가지고 c는 column, v는 value
            if v != 0
        ]
        self.size = len(self.sparse)

---

Transposing Matrix



def transpose(self):
        if self.sparse is None:
            return
        sparse = [Term() for _ in range(self.size)]
        idx = 0
        for i in range(self.cols):
            for e in self.sparse:
                if e.col != i:
                    continue
                sparse[idx].row = e.col
                sparse[idx].col = e.row
                sparse[idx].value = e.value
                idx += 1
        self.sparse = sparse
        return MatrixSparse(
        	rows=self.cols,
            cols=self.rows,
            size=self.size,
            sparse=sparse,
            )

---

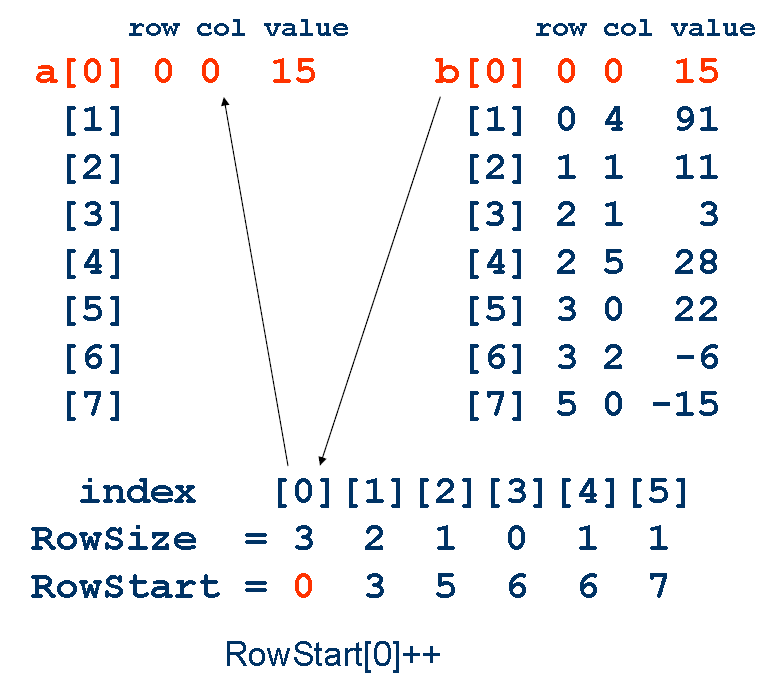

Fast Transpose Algorithm

    def transpose_fast(self):
        rowsize = [0] * self.cols
        for i in range(self.cols):
            for e in self.sparse:
                if e.col == i:
                    rowsize[i] += 1
        print(f"Row size = {rowsize}")

        rowstart = [0] * self.cols
        for i in range(len(rowstart) - 1):
            rowstart[i + 1] = rowsize[i] + rowstart[i]
        print(f"Row start = {rowstart}")

        if self.sparse is None:
            return
        sparse = [Term() for _ in range(self.size)]

        for e in self.sparse:
            sparse[rowstart[e.col]].row = e.col
            sparse[rowstart[e.col]].col = e.row
            sparse[rowstart[e.col]].value = e.value
            rowstart[e.col] += 1
        self.sparse = sparse
        return sparse

rowsize 배열을 만들어서 각 index마다 column값이 존재하면 rowsize[i] += 1

rowstart 배열은 각 인덱스마다 시작점을 저장함.

sparse 배열에 Term()을 size만큼 초기화 해주고

rowstart[e.col]의 값으로 sparse 배열에 접근해서 e.col과 row를 각각 반대로 저장해줌.

그리고 rowstart[e.col] += 1

---

Polynomial

class Polynomial:
    def __init__(self, degree):
        self.degree = degree
        self.coef = [0] * (self.degree + 1)

    def get_lead_exp(self):  # 최고차항 찾기
        i = len(self.coef) - 1
        while i >= 0 and self.coef[i] == 0:
            i -= 1

        if i < 0:
            raise Exception("Failed to get_lead_exp.")
        return i

    def evaluate(self, x):
        return sum(
            (coef * (x ** exp) for exp, coef in enumerate(self.coef) if coef != 0)
            #exp = 인덱스, coef = 값
        )

    def get_coef(self, exp):  # 계수 찾기
        return self.coef[exp]

    def is_zero(self):
        return not any(self.coef)

    def zero(self):
        for i in range(len(self.coef)):
            self.coef[i] = 0

    def attach(self, coef, exp):
        self.coef[exp] = coef
        return self

    def remove(self, exp):
        self.coef[exp] = 0

    def __str__(self):
        ret = ""
        for coef, exp in [
            (self.coef[i], i) for i in range(self.degree + 1) if self.coef[i] != 0][::-1]:
            ret += f"({coef})x^{exp} + "
        return f"{ret}\b\b"

       def __add__(self, other):
        poly = Polynomial(max(self.degree, other.degree))

        while not self.is_zero() or not other.is_zero():
            exp_01 = self.get_lead_exp()
            exp_02 = other.get_lead_exp()

            if exp_01 > exp_02:
                poly.attach(self.get_coef(exp_01), exp_01)
                self.remove(exp_01)
            elif exp_01 < exp_02:
                poly.attach(other.get_coef(exp_02), exp_02)
                other.remove(exp_02)
            else:
                coef = self.get_coef(exp_01) + other.get_coef(exp_02)
                exp = exp_01
                poly.attach(coef, exp)

                self.remove(exp_01)
                other.remove(exp_02)

        return poly

    def __mul__(self, other):
        poly = Polynomial(self.degree + other.degree)
        temp = Polynomial(self.degree + other.degree)

        for coef, exp in [
            (self.coef[i] * other.coef[j], i + j)
            for i in range(self.degree + 1) if self.coef[i] != 0
            for j in range(other.degree + 1) if other.coef[j] != 0
            ][::-1]:

            if poly.get_coef(exp) != 0: #같은 차수 덧셈
                temp.attach(coef, exp)
                poly = temp + poly
            else:
                poly.attach(coef, exp)

        return poly

이 방법은 최고차수만큼 메모리를 할당하기 때문에 계산이 쉽다는 장점이 있으나, 메모리 낭비가 심함.



메모리 관리를 위해 Term을 사용

class Term:
    def __init__(self, coef =0, exp =0):
        self.coef = coef
        self.exp = exp

    def __repr__(self):
        return str(self)

    def __str__(self):
        return f"{self.coef, self.exp}"

class Polynomial:
    def __init__(self):
        self.bgn = 0
        self.end = 0
        self.terms = []

    def attach(self, coef=0, exp=0):
        self.terms.append(Term(coef, exp))
        return self

    def evaluate(self, x):
        return sum((i.coef * (x**i.exp) for i in self.terms))

    def find_term(self, exp):
        i = 0
        while i < len(self.terms) and self.terms[i].exp != exp:
            i += 1

        return self.terms[i] if i < len(self.terms) else None

    def __str__(self):
        ret = ""
        terms = sorted(self.terms, key=lambda x: x.exp, reverse=True)
        for i in terms:
            ret += f"({i.coef})x^{i.exp} + "
        return f"{ret}\b\b\b"

    def __add__(self, other):
        poly = Polynomial()
        terms_a = self.terms
        terms_b = other.terms

        pos_a, pos_b = 0, 0

        while pos_a < len(terms_a) and pos_b < len(terms_b):
            term_a, term_b = terms_a[pos_a], terms_b[pos_b]

            if term_a.exp > term_b.exp:
                poly.attach(term_a.coef, term_a.exp)
                pos_a += 1
            elif term_a.exp < term_b.exp:
                poly.attach(term_b.coef, term_b.exp)
                pos_b += 1
            else:
                coef = term_a.coef + term_b.coef
                if coef != 0:
                    poly.attach(coef, term_a.exp)
                pos_a += 1
                pos_b += 1
        while pos_a < len(terms_a):
            term = terms_a[pos_a]
            poly.attach(term.coef, term.exp)
            pos_a += 1
        while pos_b < len(terms_b):
            term = terms_b[pos_b]
            poly.attach(term.coef, term.exp)
            pos_b += 1
        return poly

    def __mul__(self, other): #과제
        poly = Polynomial()

        for i in self.terms:
            for j in other.terms:
                exp = i.exp + j.exp
                coef = i.coef * j.coef

                term = poly.find_term(exp)
                if term is None:
                    poly.attach(coef, exp)
                else:
                    term.coef += coef

        return poly
